Reduce Changeovers from 45 Minutes to 5 Minutes

A smarter clamp frame system designed to improve efficiency, safety, and uptime without replacing your existing thermoforming equipment.

Tool-free adjustments
One frame replaces multiple setups
Built for continuous production environments

The Real Cost of Changeovers

Isn't Always Obvious.

Most thermoforming operations accept long changeovers as part of the process.

30 to 45 minutes per change may not seem like much at first. But over the course of a full production day, that downtime compounds quickly.

What that actually means:

Lost production time every shift
Increased labor costs
Delayed schedules and reduced throughput

And in many cases, the biggest bottleneck isn’t the machine. It’s the clamp frame setup.

If your team is constantly adjusting, swapping, or working around limitations, you’re losing more time than you think.

A More Flexible Approach to Clamp Frames.

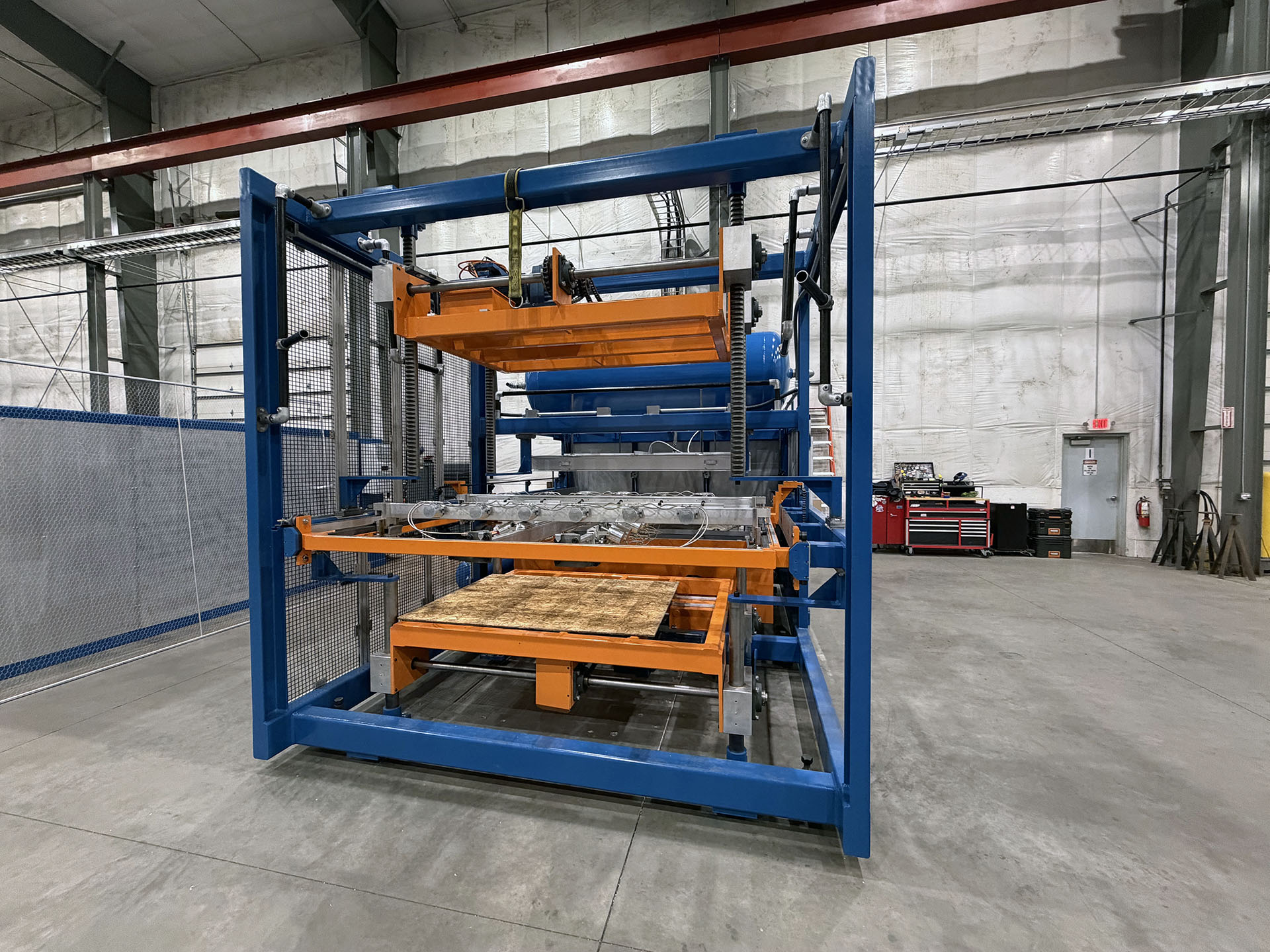

The 4-Way Adjustable Clamp Frame was developed to eliminate the inefficiencies built into traditional systems.

Instead of requiring multiple frames or complex adjustments, this system allows your team to quickly adapt to different sheet sizes using a single, streamlined setup.

It integrates directly with your existing cut-sheet machines, so there’s no need for major equipment changes.

What makes it different:

4-way adjustability for maximum flexibility

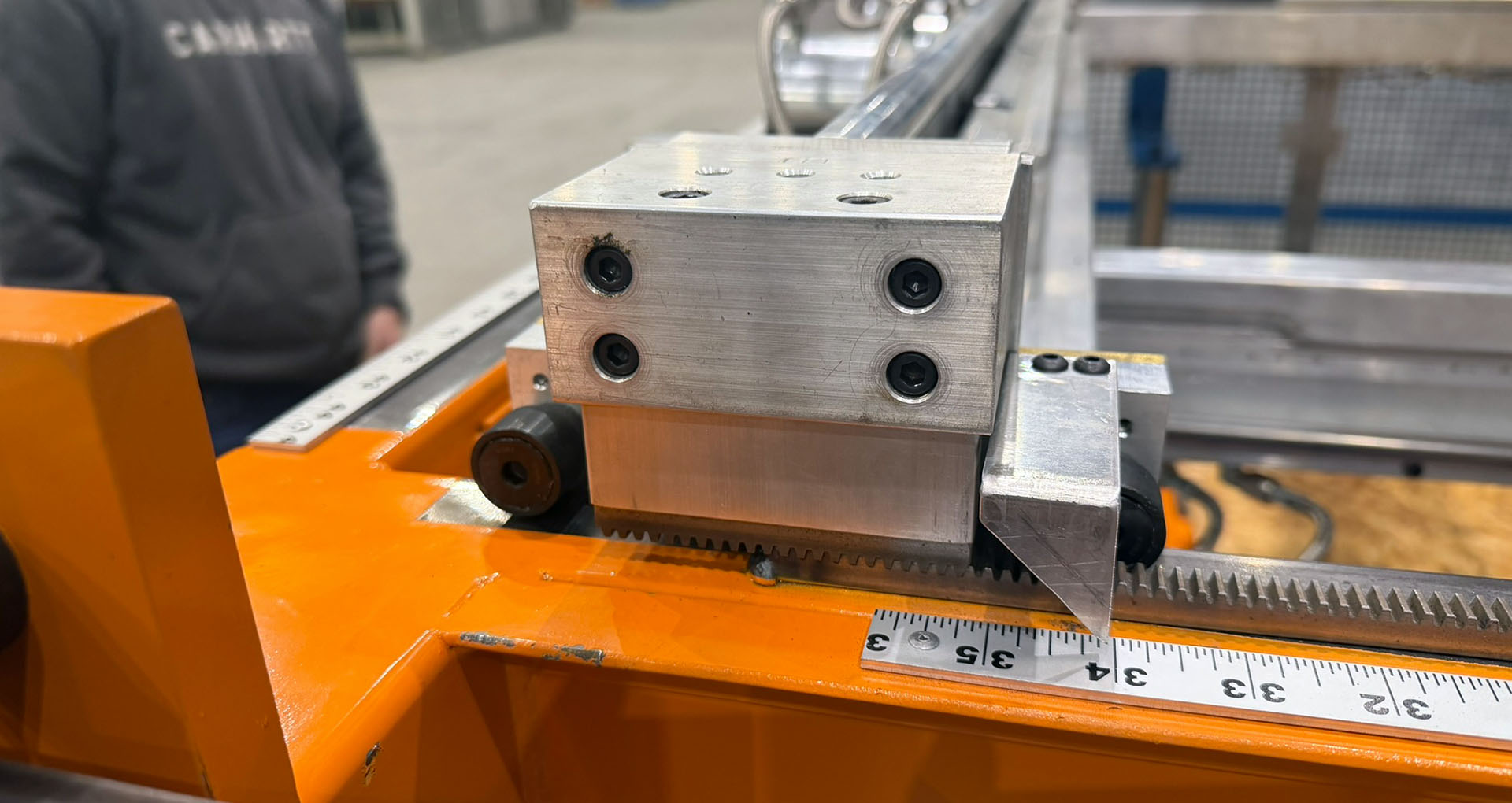

Hand clamp adjustments, no tools required

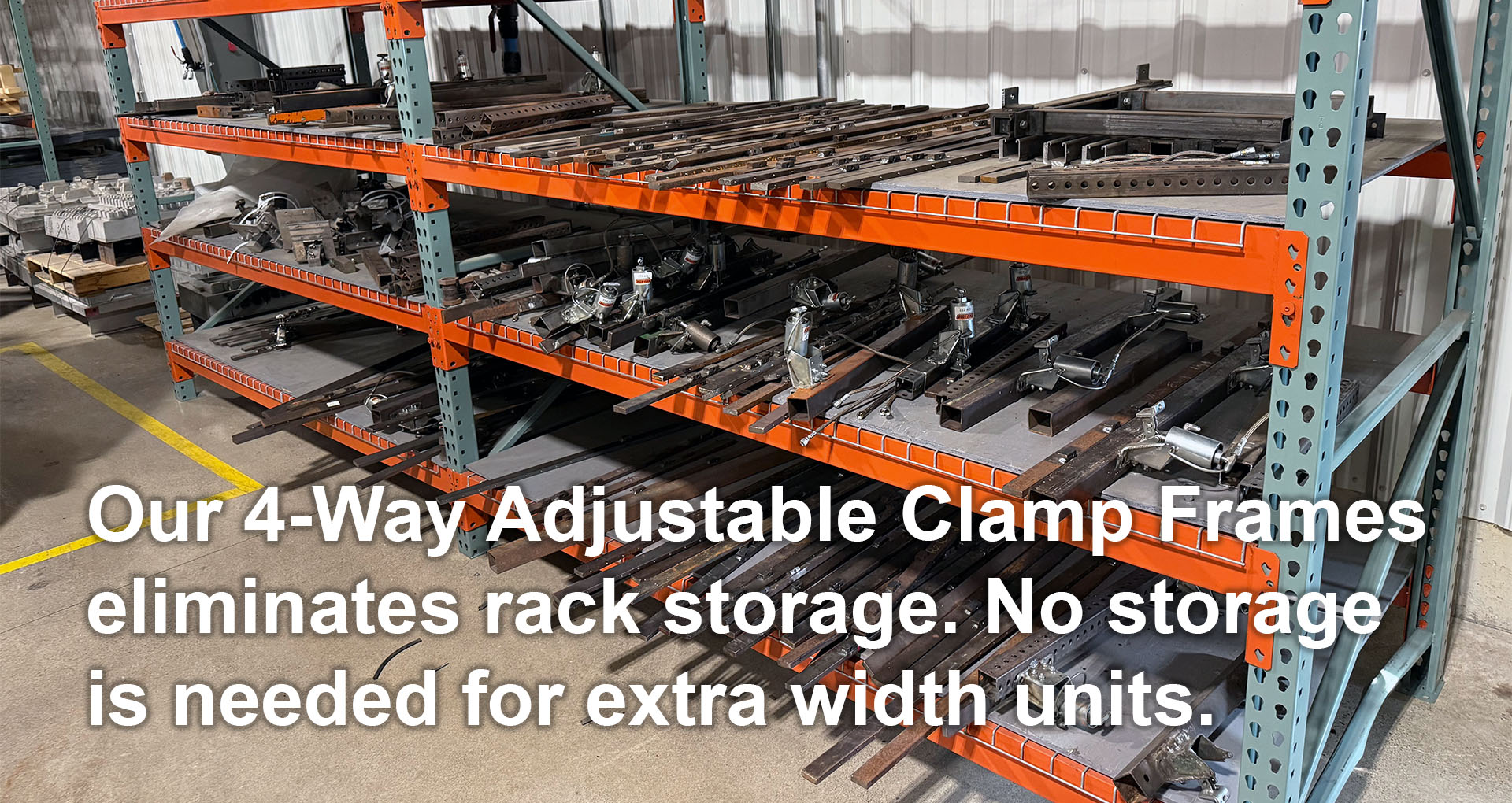

Eliminates the need for dedicated width units

This is not a workaround.

It’s a better way to run your process.

See the 4-Way Clamp Frame in Operation.

Understanding how a system performs in real production conditions makes all the difference. In this video, you can see the 4-Way Adjustable Clamp Frame in action, including how quickly adjustments are made, how the system handles different configurations, and how it integrates into the overall workflow.

This is where the benefits become clear. You can see how the design reduces complexity, shortens changeovers, and creates a more efficient process from one job to the next.

What to watch for:

Speed of adjustment between setups
Simplicity of operator interaction
Stability and consistency during operation
Overall workflow improvement

It’s a straightforward example of how a better system leads to better performance on the floor.

Designed to Keep Production Moving.

With traditional clamp frames, changeovers often involve multiple steps, tools, and components. The 4-Way Adjustable Clamp Frame simplifies that entire process. Operators can adjust quickly and move between jobs in minutes instead of stopping production for extended periods.

In practice, this means:

Faster job transitions
Less downtime between runs
Fewer components to manage
More consistent setups

Instead of planning around changeovers, your operation can run with fewer interruptions and greater flexibility.

Built for Daily Production Environments.

Clamp frames are often judged by how they perform on day one. The real difference shows over time.

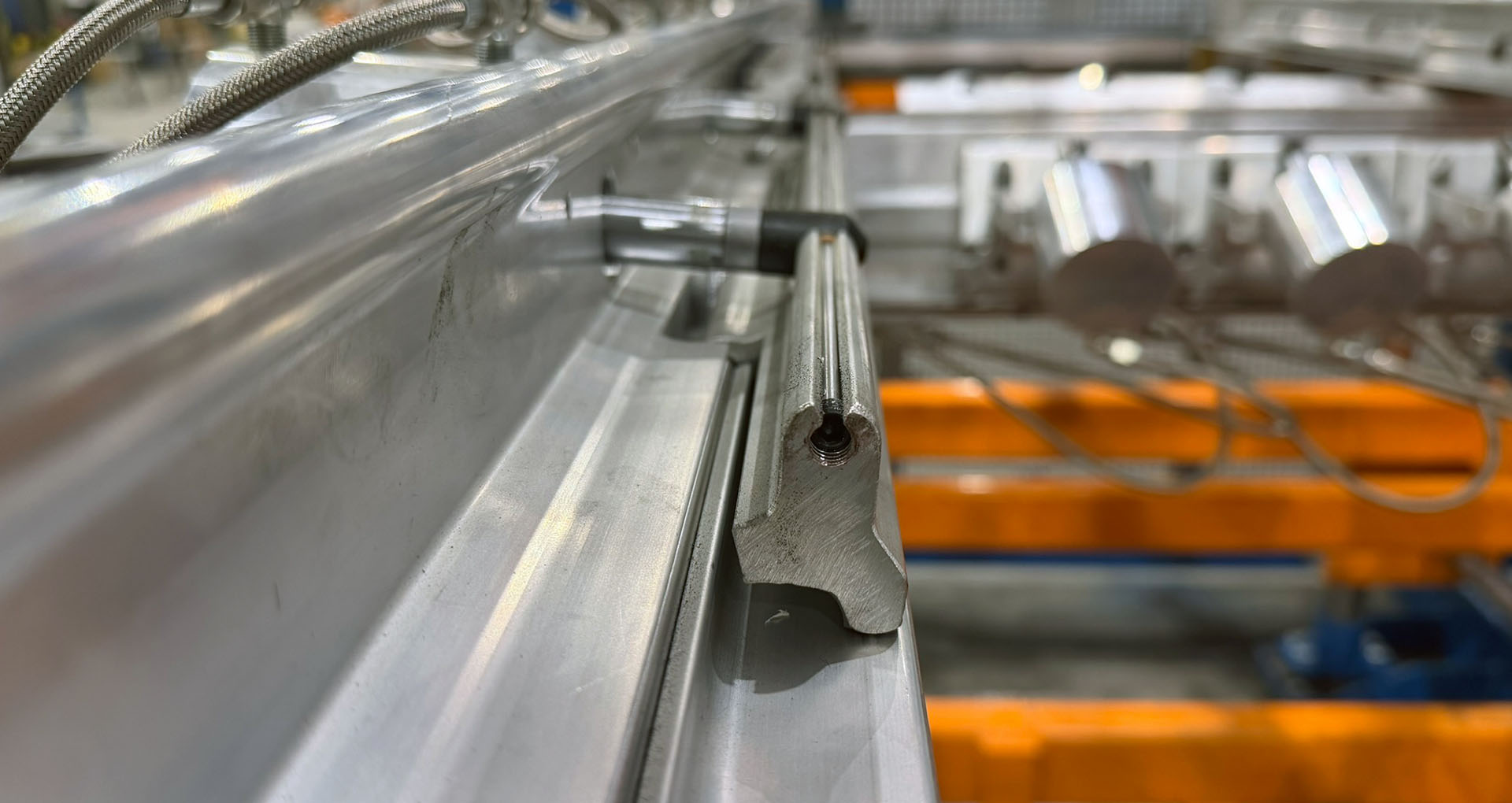

The 4-Way Adjustable Clamp Frame is constructed using heavy-duty aluminum extrusion designed for continuous industrial use.

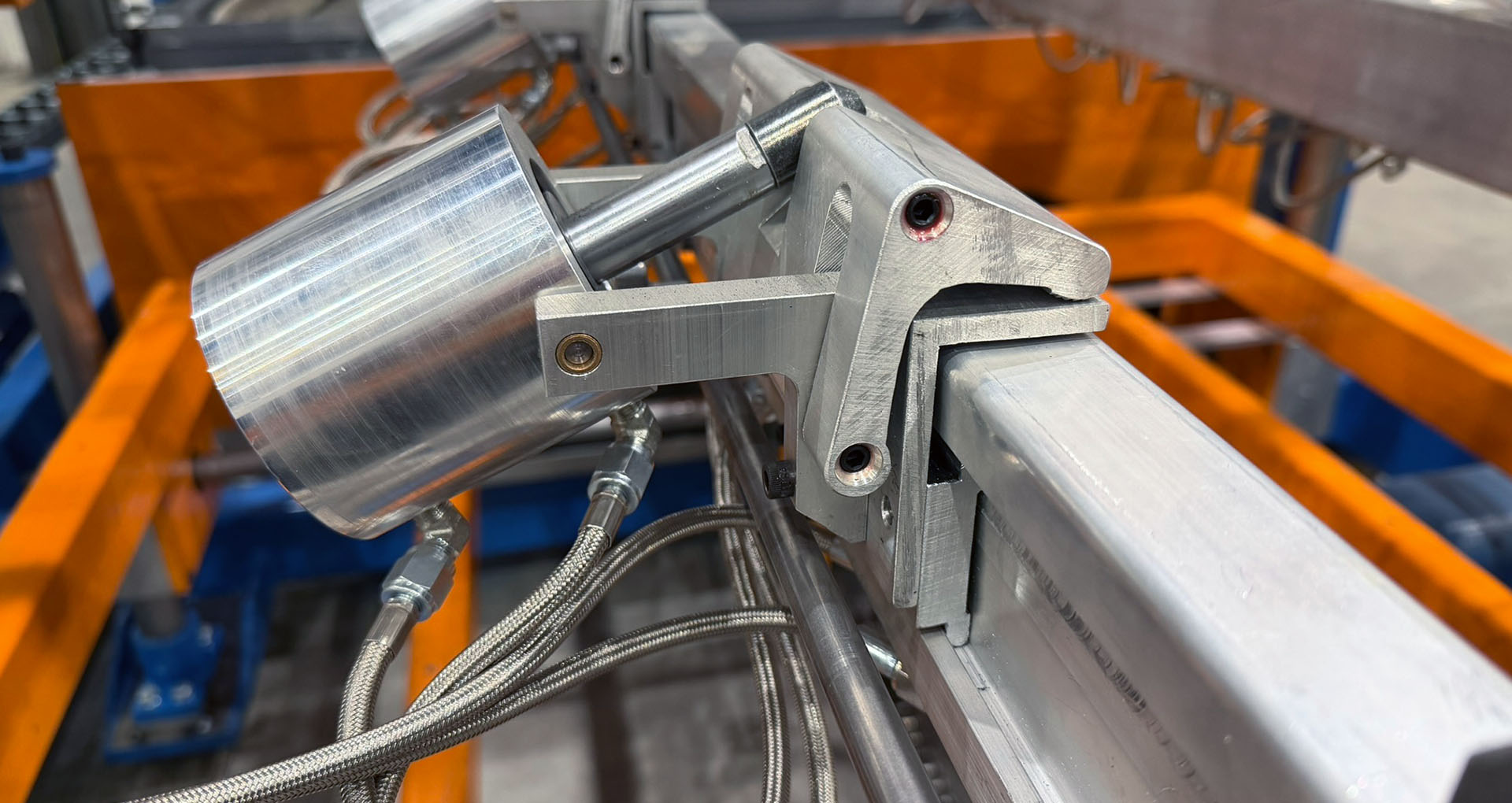

Each clamp is powered by a 2-inch bore cylinder, delivering approximately 250 ft-lbs of force per clamp. This ensures consistent pressure across the sheet and reliable forming performance.

What that delivers:

Consistent results across runs
Reduced variability
Long-term durability with fewer issues

This is equipment designed to perform under real production conditions, not just occasional use.

Short Bar System
For Faster, Flexible Adjustments.

The Short Bar System is designed for operations that need quick, efficient adjustments across a range of sheet sizes without overcomplicating the setup. It provides a compact, streamlined approach to clamp positioning while maintaining the strength and consistency required for reliable forming.

With its simplified configuration, operators can make adjustments quickly and with minimal effort, reducing downtime between runs and improving overall responsiveness on the floor.

Key Advantages:

Faster adjustments between smaller or varying sheet sizes
Simplified handling and setup
Reduced operator fatigue during changeovers
Maintains consistent clamping force across the sheet

This system is ideal for operations that prioritize speed, flexibility, and ease of use in day-to-day production.

Long Bar System
For Larger Formats and Greater Coverage.

For larger sheet sizes and applications that require extended clamping coverage, the Long Bar System delivers the strength and stability needed to maintain consistent results. Built on the same heavy-duty foundation, this configuration allows for wider span control while maintaining uniform pressure across the entire sheet. This is especially valuable in applications where material consistency, part quality, and repeatability are critical.

Key Advantages:

Supports larger sheet formats with ease
Maintains even pressure across wider areas
Reduces variability in forming results
Designed for stability under demanding production conditions

The Long Bar System gives you the flexibility to handle larger jobs without sacrificing performance or efficiency.

Improve Safety While Simplifying Setup.

Better processes don’t just improve output. They also improve working conditions. The all-aluminum construction allows the frame to cool faster after operation, reducing the risk of burns during handling.

Because the system supports one-person setup, fewer operators are exposed during changeovers. And by eliminating individual width units, you remove the need to lift and move heavy components.

The result:

Safer handling conditions
Reduced physical strain
Fewer opportunities for injury
A cleaner, more controlled setup process

A Simple, Measureable Return on Investment.

Let’s look at a typical scenario:

Investment: ~$13,000 for a 20-foot clamp frame
Current changeovers: 3 per day at 30 minutes each
Time lost: 90 minutes per day

With the 4-way adjustable clamp frame:

Changeovers drop to ~5 minutes
~90 minutes of production time recovered daily

At a $65/hour labor rate:

~$97.50 saved per day
Payback in ~134 days

And that doesn’t include the added value of increased output from more machine uptime.

More uptime = more production capacity.

Is This a Fit for Your Operation?

This system is ideal for operations that:

Run multiple SKUs or sheet sizes
Experience frequent changeovers
Want to improve throughput without new machines
Are looking to simplify setup and reduce downtime

If changeovers are slowing your process, this is worth evaluating.

Watch Above Video to See the 4-Way Adjustable Clamp Frame in a Timed-Video Format.

Let's Look at Your Current Setup.

Every facility is different.

Machine type, materials, production volume, and workflow all impact whether a solution like this will deliver value. We’ll take a look at your current process and give you a straightforward recommendation based on how you’re running today.

No pressure. Just a practical evaluation.
